I am about to start writing on a series of posts based on my long-time endeavours in distributed systems design and such, especially on Apache Kafka, KRaft, et al. soon, and I wanted to write something prior to that so that it will be a nice introductory foundation on some key ideas that are essential for my readers to understand before I delve into the details in my future post.
Hence this post on the key idea of Raft consensus algorithm.
Introduction
In the digital age, where data is the new gold, ensuring its integrity, availability, and consistency across distributed systems is paramount. These systems, composed of multiple nodes working together to form a cohesive network, are the backbone of modern computing landscapes, supporting everything from global financial transactions to social media platforms.
However, managing these distributed systems presents unique challenges, particularly when it comes to achieving consensus on data states across nodes. This is where the Raft consensus algorithm comes into play, offering a reliable and understandable solution for maintaining harmony in distributed networks. Let’s dive deeper into this fascinating world, exploring the context, challenges, and the pivotal role of Raft in distributed consensus.
This blog post embarks on a journey to demystify the Raft algorithm, illustrating its importance in distributed consensus and metadata management with examples and code snippets.
The Basics of Distributed Systems and Nodes
Before we delve into the intricacies of Raft, it’s crucial to lay the groundwork by understanding what distributed systems are and why they are so important. A distributed system is a network of independent computers, referred to as nodes, that work together as a single coherent system. These nodes communicate and coordinate their actions by passing messages, striving to achieve common goals such as processing tasks or storing data.
What is a Node?
In the context of distributed systems, a node represents an individual computer or server within the network. Each node holds a piece of the system’s overall data or computational power. The beauty of distributed systems lies in their ability to scale horizontally, meaning that as you add more nodes, the system’s capacity for processing and storage increases.
The Challenge of Achieving Consensus
One of the fundamental challenges in distributed systems is ensuring all nodes agree on the current state of the system—a concept known as consensus. Achieving consensus is critical for operations like committing transactions, electing leaders, or replicating data. However, distributed environments are inherently unpredictable, with potential issues such as network failures, delays, and nodes crashing. These factors complicate the process of reaching a unanimous agreement on the system’s state.
Enter the Raft Consensus Algorithm
Raft was designed as a solution to these challenges, providing a more accessible and understandable approach to consensus in distributed systems. Its primary goals include ensuring data consistency across all nodes and maintaining system availability even in the face of failures.
Understanding Raft: The Basics
At its core, Raft is designed to be understandable. It breaks down the consensus problem into manageable components or stages, if you will, viz., leader election, log replication, and safety.
By ensuring that there is a single, consistent leader managing log entries across all nodes, Raft maintains the integrity and consistency of the distributed system.
Key Concepts and Terminology
- Term: A period during which a leader tries to make decisions. Terms are numbered with consecutive integers.
- Leader Election: The process by which nodes in the cluster elect one leader responsible for managing log replication.
- Log Replication: The leader takes client requests, appends them to its log, and replicates these entries across the cluster.
- Safety: Ensuring that the system adheres to the principles of consensus, including agreement, majority, and integrity of log entries.
How Raft Works: A Closer Look
Leader Election
Raft uses a heartbeat mechanism to trigger leader elections. If a follower node doesn’t receive a heartbeat from the current leader within a given timeout, it assumes there is no active leader and initiates an election.
Log Replication
Once a leader is elected, it begins accepting client requests, which it appends to its log. The leader then replicates these logs to its followers, ensuring data consistency across the cluster.
Example Scenario: The leader receives a client request to add a new record. It appends the record to its log and sends AppendEntries RPCs to its followers.
Ensuring Safety
Raft ensures safety through the “commit” concept, where log entries are committed once a majority of nodes have stored them. Only committed entries are applied to the node’s state machine.
Example Scenario: A log entry is considered committed when it’s replicated on the majority of the nodes, including the leader.
Typical Raft workflow: Sequence

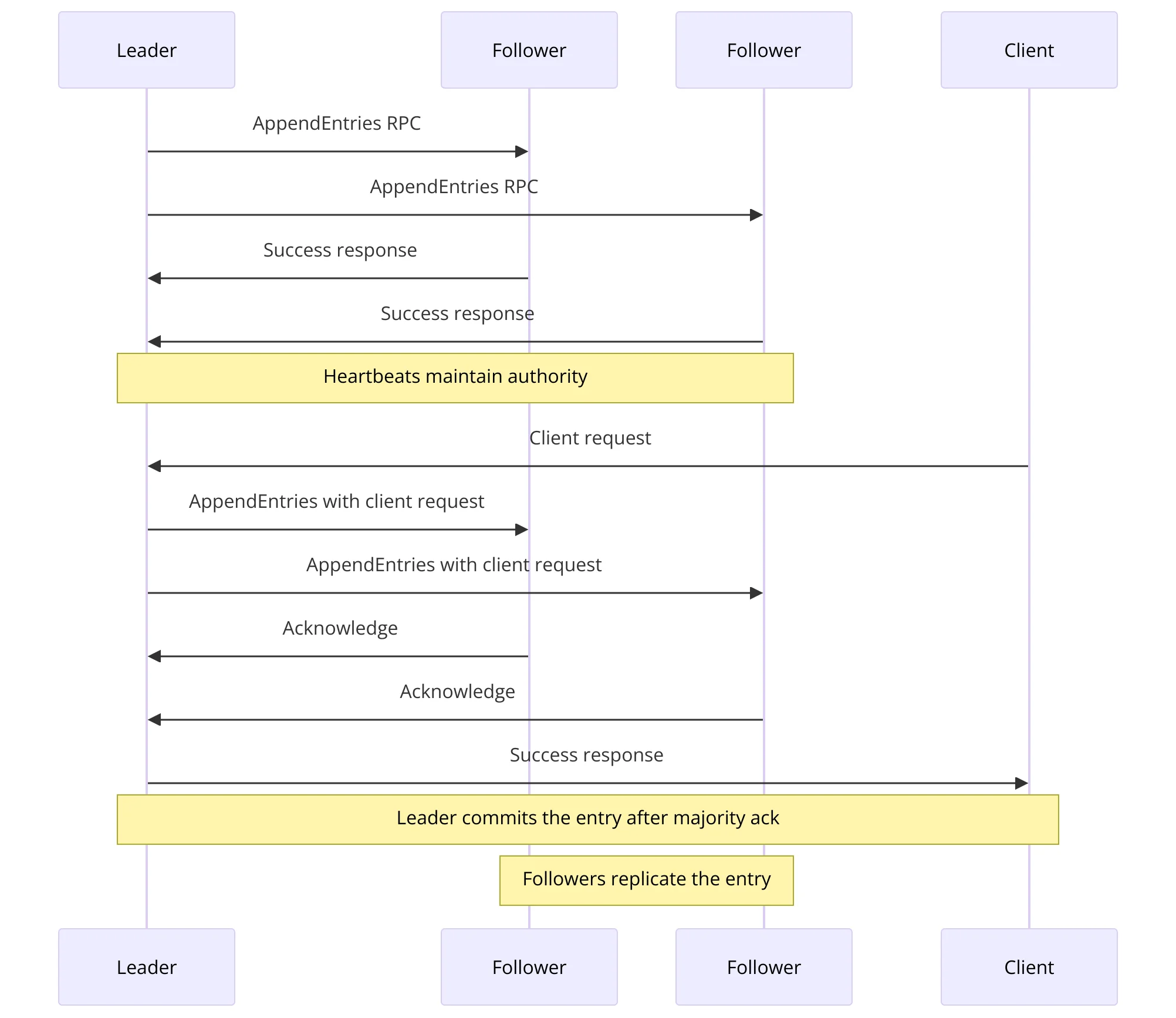

Here I put together a simple sequence diagram of the typical Raft consensus algorithm in action:
Practical Use Case: A Financial Transaction System
Imagine a distributed system managing financial transactions for a global bank. This system must process millions of transactions daily, ensuring they are accurately recorded and reflected in account balances across all nodes in the network.
The Need for Raft
In such a system, Raft ensures that when a transaction is processed, all nodes agree on the order and outcome of transactions. For example, if a customer transfers money between accounts, Raft guarantees that this transaction is committed and replicated across the network, preventing issues like double spending or data inconsistency.
Implementing Raft: A Closer Look with Code Snippets
To illustrate how Raft might be implemented in our financial transaction system, consider the following Python snippet for leader election:
# Simplified example of initiating leader election in Raft
import random
import time
def initiate_leader_election(nodes):
current_term += 1
votes_received = 1 # Vote for self
for node in nodes:
# Simplified election logic: request vote from each node
vote = request_vote(node, current_term)
if vote:
votes_received += 1
if votes_received > len(nodes) / 2:
print("This node is now the leader.")
return True
return False
This code demonstrates the initiation of a leader election process within a Raft cluster, emphasizing the simplicity and efficiency of Raft’s approach to consensus.
Conclusion
In the complex and often chaotic world of distributed systems, Raft stands out as a beacon of clarity and reliability. By providing a straightforward mechanism for achieving consensus, Raft not only ensures data integrity and system availability but also democratizes the process, making distributed system management accessible to a broader range of developers and architects.
Whether it’s managing financial transactions, coordinating global data stores, or powering social networks, Raft offers a proven, understandable solution for one of computing’s most challenging problems. With its emphasis on simplicity, safety, and performance, Raft is poised to continue playing a critical role in the evolution of distributed systems.
Hope this was useful to you.
Further Reading and References
To deepen your understanding of the Raft consensus algorithm and its application in technologies like Apache Kafka, here are some invaluable resources that you explore further:
- The Raft Consensus Algorithm and original Raft paper that provides a comprehensive overview of the algorithm’s design and objectives. It’s a must-read for anyone serious about distributed systems.
- KIP-500: Replace ZooKeeper with a Self-Managed Metadata Quorum
- The Secret Lives of Data – Raft
Have fun!
